Are you still caught off guard by sudden downpours? Are you always worried about your shop and furniture? Choose our aluminum alloy flood barriers!
Weather events have become more unpredictable than ever with devastating storms, floods, heavy rainfall, and hurricanes becoming more common. At the same time, commercial warehouses and workspaces have grown in size, scale, and complexity in urban environments. A flooded building doesn’t just mean lost paperwork; it can mean billions of dollars in sensitive equipment and inventory lost coupled with catastrophic downtime while a business recovers, underscoring the need for protection against flooding.
Our flood protection systems comply with flood management policies, the Federal Emergency Management Agency (FEMA), and other relevant regulations. We are trusted by businesses and individual residents worldwide. All components of Cangzhou Flood Materials and Equipment Co., Ltd. are manufactured in China to ensure durable and long-lasting protection.
Specifications:
Material: aluminum alloy
Pillar size: 9x6 cm
Pillar wall thickness: 0.4 cm
Wall thickness of baffle: 0.2 centimeters
Thickness of baffle:4 cm
Height of single flooding baffle: 20 centimeters
(Note: each baffle height is 20 centimeters, can be stacked according to the need)
Length: customizable
(Length can be customized as needed)
Installation steps
During the rainy season or hurricanes, are you still worried about floodwaters eroding your garage, home, kitchen, roads?
Why not bring our aluminum flood barriers home right away?
This flood barrier can stop flood water from entering indoor, yard, garden or garage, after the flood is over, it can be easily disassembled and stored, which can effectively avoid property damage due to flooding, widely used in homes, shopping malls, garages, construction sites, schools and so on.

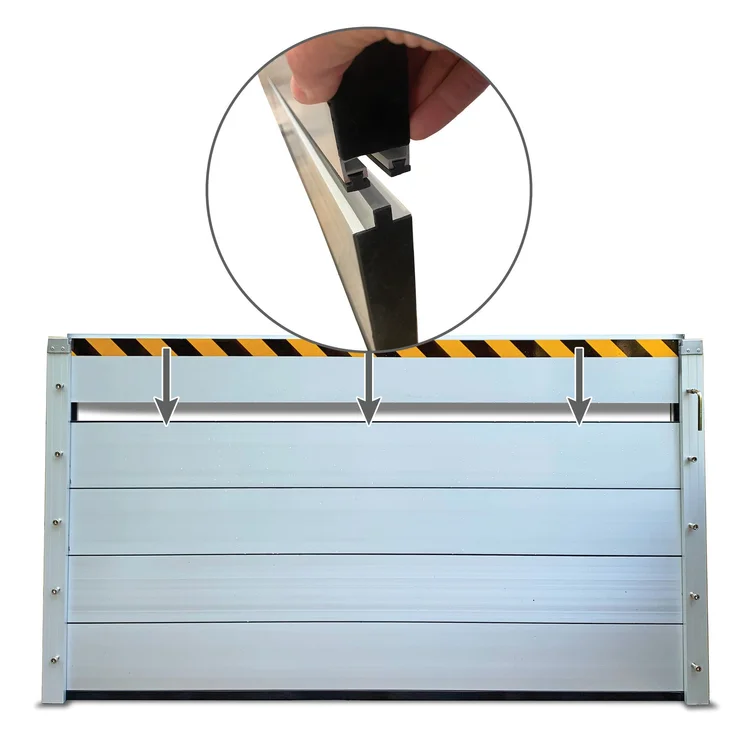

The flood barriers are sealing strip design between each baffle to ensure excellent waterproof performance of the flood barrier.
The structure of the combined flood control baffle is reasonable and the seal is tight.
It can effectively block floods and reduce the impact and erosion of the flood water along the coast.

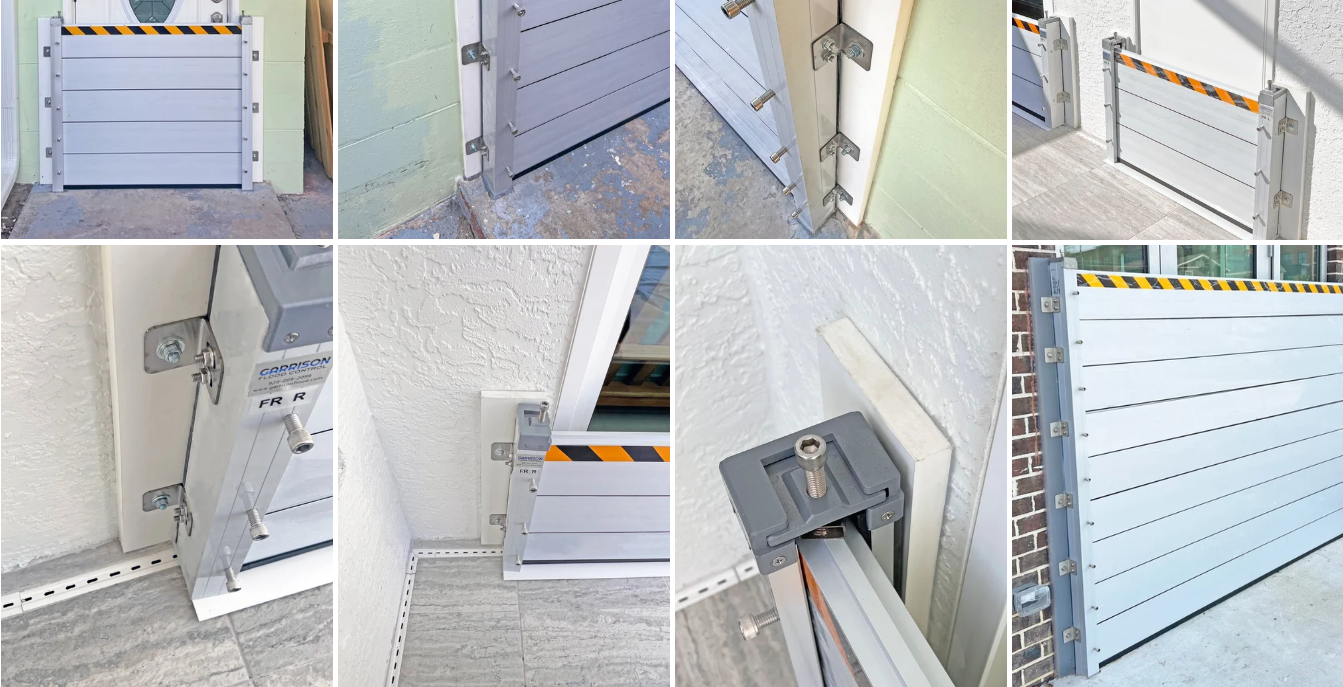

Simple Set Up

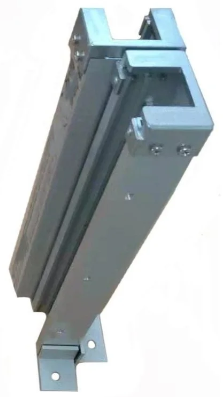

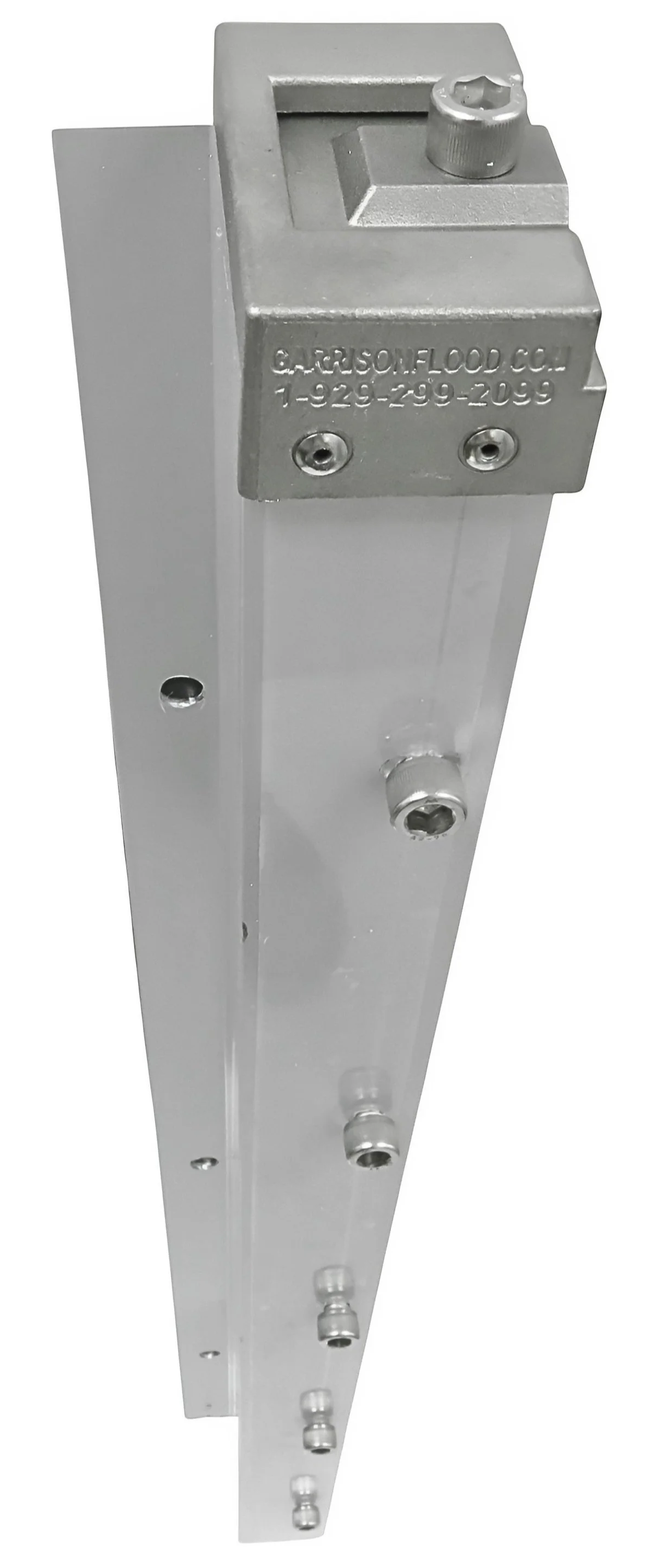

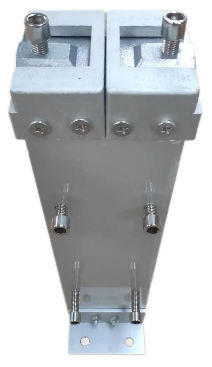

Affix Mounting Posts to Sides of Opening
-

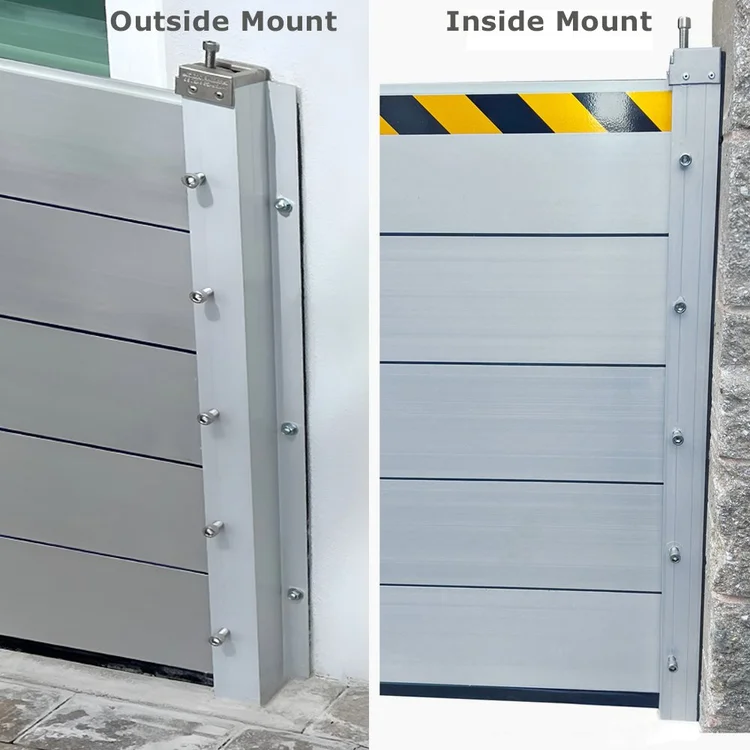

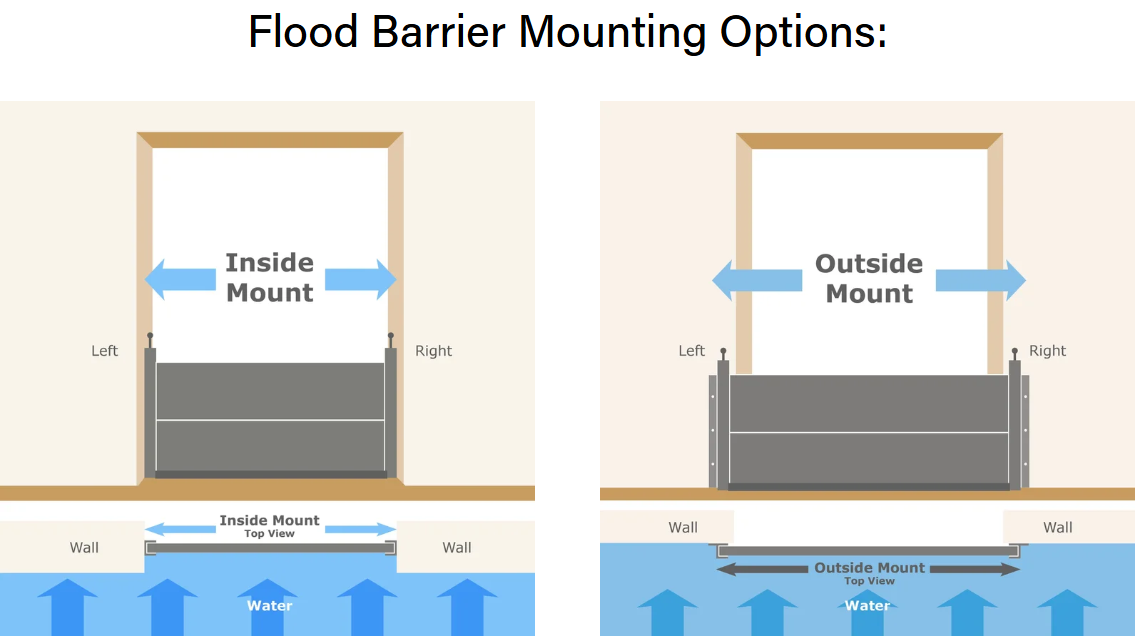

Decide if you prefer to install posts inside your opening or just to the outside of the opening. We tend to prefer outside, if possible, as the wall itself offers some additional support. -

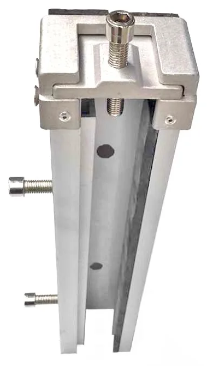

Check that outside rubber seals are facing the wall in the direction that the post is to be installed and that the U-channel opening is facing the opening (ready to receive a plank).
-

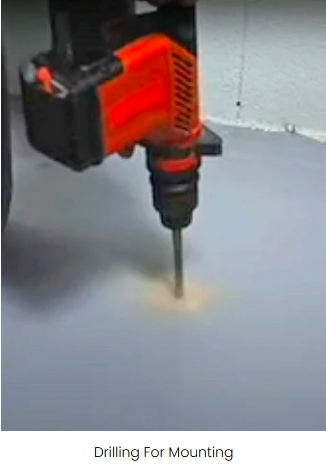

Use a hammer drill to drill holes for expanding wall anchors (included).
-
Insert and expand anchors to mount posts to the wall. It is important that these be inserted into a solid concrete, cinderblock, or cement wall, for greater stability of the system.

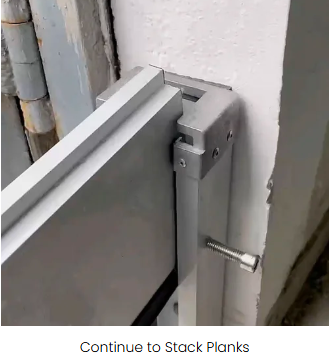

Insert Planks Into U-Channel Posts
-
When a flood is expected, insert planks into the U channels on either side of the door opening.
-
It is important to loosen the tightening bolts and the top locking bracket, in order to get slats into the opening.
-

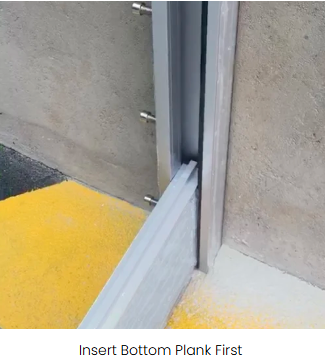

Be sure that rubber seal is facing downwards in order to make a good seal with the ground below. Apply some pressure to the lower slat to create a good seal.
-
Continue to insert slats until all flood barrier slats are in position, ready for tightening.
-
Note: If reflective warning tape was selected with your order, place the slat with tape last (at the top).
Tighten Planks Into U-Channel Posts
-

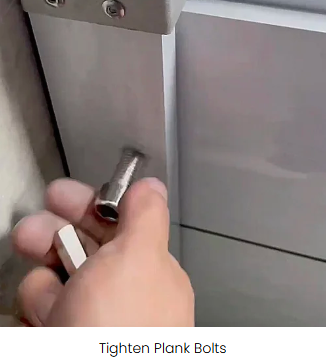

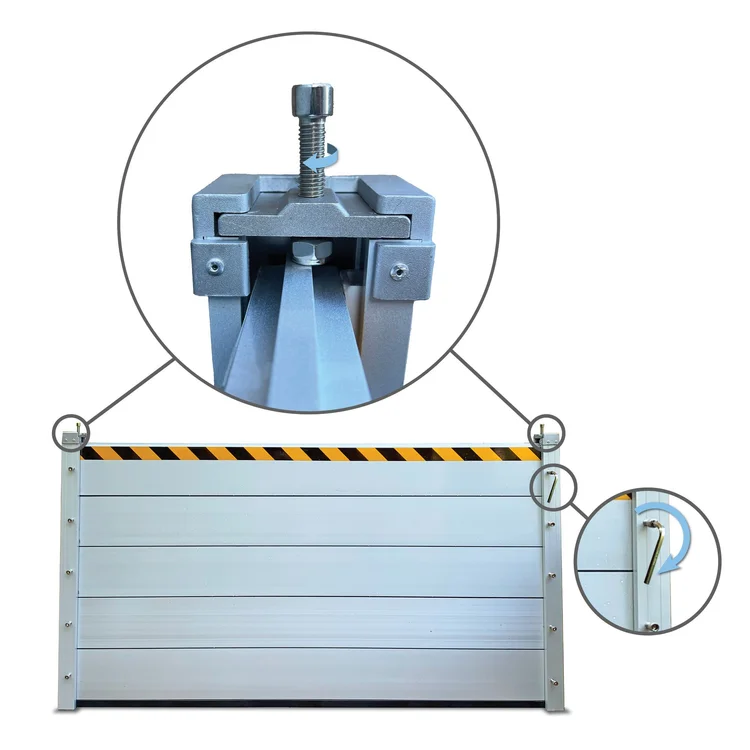

Use the included Allen wrench to tighten flood planks into position and against the internal rubber seals.
-

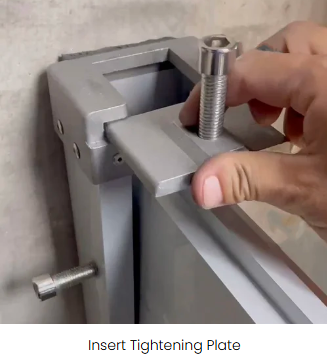

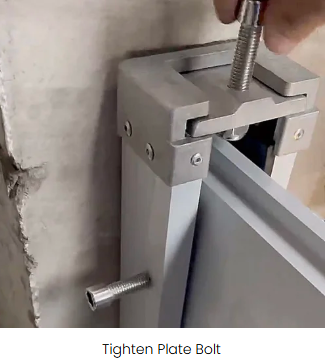

Insert top locking clamps into the post top slot. Use the Allen wrench to tighten down the clamps and to apply pressure to flood planks below, enhancing the seal between slats.
-
Use the tightening bolts on the posts to tighten down the planks within the U-channel and to ensure a seal with the neoprene strips within the channel.
-

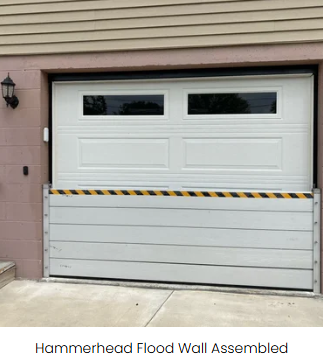

When a flood is over, simply remove planks in the reverse order, clean off any debris, dry and store your flood barrier for future use.
Adding Wall Spacer Columns
If you need to move the posts out further than the wall, say to clear door hardware or a door frame, then you can use spacers to move the posts further away from the wall.
These can be recycled wood lumber, treated lumber, or steel extrusions. Recycled wood spacers come in various sizes and can be purchased at most home improvement stores.
To install post spacers, simply bolt the spacers to your wall using standard anchors. Caulk around the edges to seal the connection point and ensure that it is waterproof.
Once spacers are installed, mount Hammerhead posts onto the spacer, as you would to a standard wall. Simply bolt these into position using the same methodology indicated in our instructions.
Making Posts Removable / Demountable

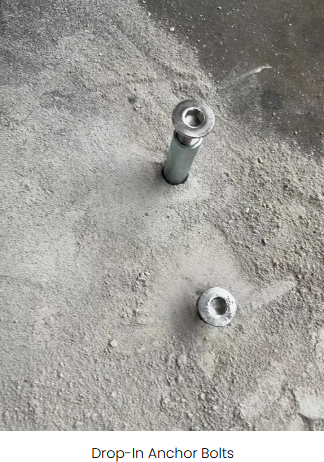

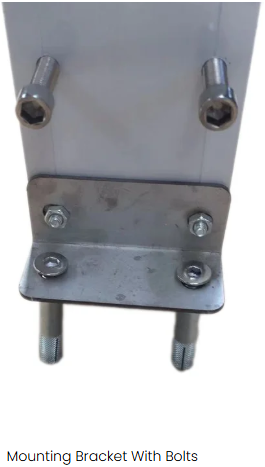

It is possible to make posts removable, using drop-in anchor bolts. The threaded sleeves are left in the wall and the flood barrier posts are able to be removed and reinstalled in advance of a flood event. It is important to confirm a good seal between the post, neoprene, and wall during each installation.
To make post removable there are two method you may use:
Method 1

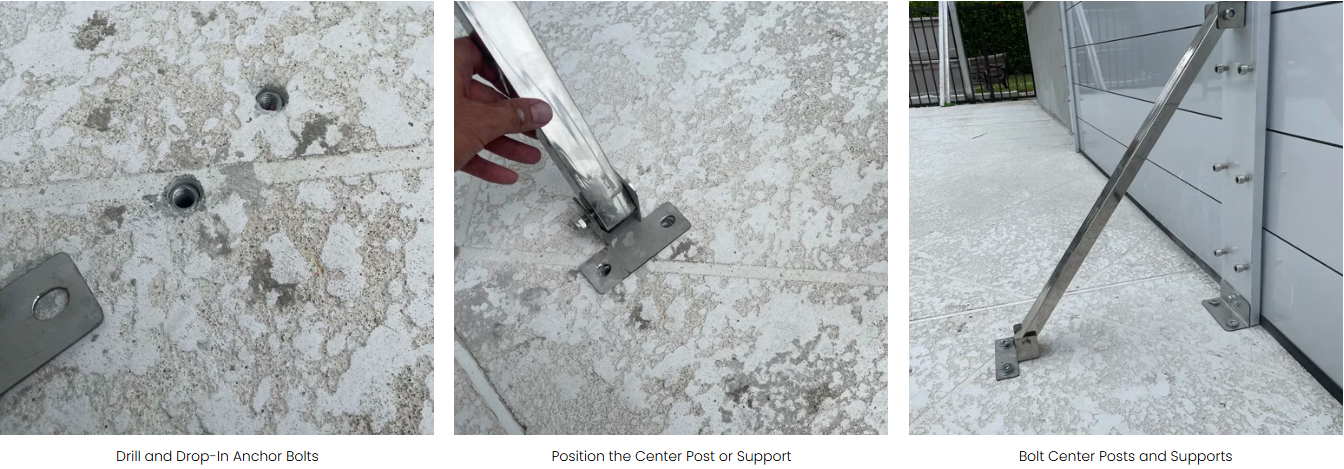

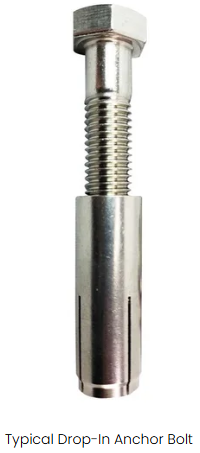

Use standard drop in masonry anchors. Insert the drop in anchor into the drilled holes with the open side facing up. Use a setting tool to lock the drop-in anchor into place. Place the setting tool into the anchor and strike the top of the setting tool with a hammer, until the lip of the tool touches the rim of the anchor. This will lock the threaded receiver sleeve in place permanently.
Remove the tool and the anchor should remain firmly in place, ready to receive a bolt. Place machine threaded bolts through each hole in the post base and into the anchor bolt. Tighten down to secure the post to the floor below.

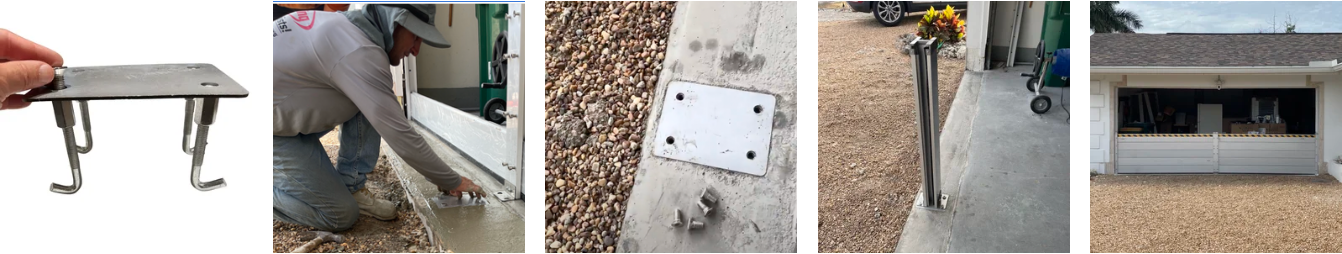

Method 2

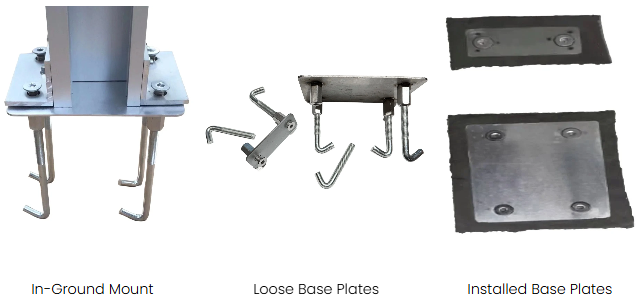

Utilize our in-ground base plate, which is poured into the concrete.
To place the baseplate, cut into existing concrete to a depth and size sufficient to accommodate the baseplate, the bolt receivers welded to the bottom of the baseplate, and the additional bolt protrusions which screw into the underside of the receivers (designed to give greater support depth into the concrete).
Pour concrete around the baseplate, fully enclosing the plate, bolt receivers and bolt protrusions.

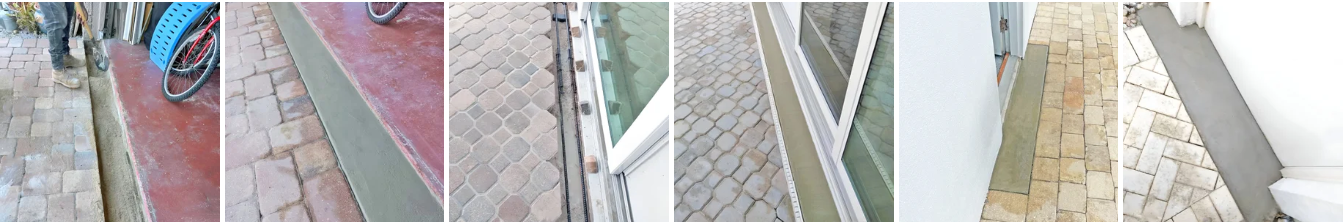

Adding a Concrete Footer to Enhance The Watertight Seal
To improve the seal between the Hammerhead and the ground below, it is important to have a level and smooth surface.
In situations where there are pavers in sand, gravel, or dirt as a subsurface, it is important to add a concrete footer underneath the Hammerhead bottom rail to ensure a good seal.
This footer should extend across the entire width of the barrier, including the U-Channel Posts.
The footer should be positioned right up against your structure, to ensure a good connection and seal off. If the footer is being placed between two property walls, make sure that it is positioned to abut these walls to create a secure seal.
-
Installation of the Footer:
Cut into the existing ground to a depth and size that can accommodate the Posts (and Baseplates in some instances) prior to installation. Frame out the area to receive concrete. -
Pouring and Smoothing:

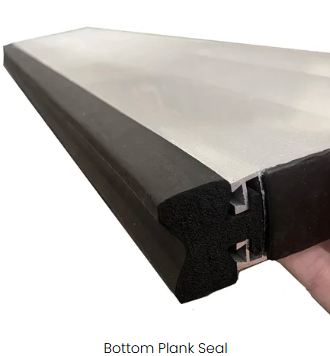

Once leveled, pour concrete into the hole and smooth out the top to create a level surface. This enhances the watertight seal against the Hammerhead Bottom Plank's thick neoprene gasket. -
Rebar Reinforcement:
It is recommended to consult with your local contractor to determine if rebar reinforcement is recommended for the Footer area before concrete pour. Usually rebar is required for driveways and other high traffic areas.
Why chooes us?
[Basement Flood Barriers: Drip-Tight Protection] Facing urban waterlogging, our Basement Flood Barriers are made of high-quality aluminum alloy with an electrophoretic finish for durability. The advanced integrally molded design and stepped rubber strips ensure superior waterproof performance even under extreme rainfall.
[Garage Flood Shield Price: Cost-Effective Sandbag Alternative] Looking for Sandbag Alternatives? Our Garage Flood Shields are not only easy to install but also reusable. Rapidly assembled before the rainy season, they leave vehicle access completely unobstructed when disassembled. As an Industrial Flood Gate Manufacturer (Mfr.), we offer competitive direct pricing for long-term security at a lower cost.

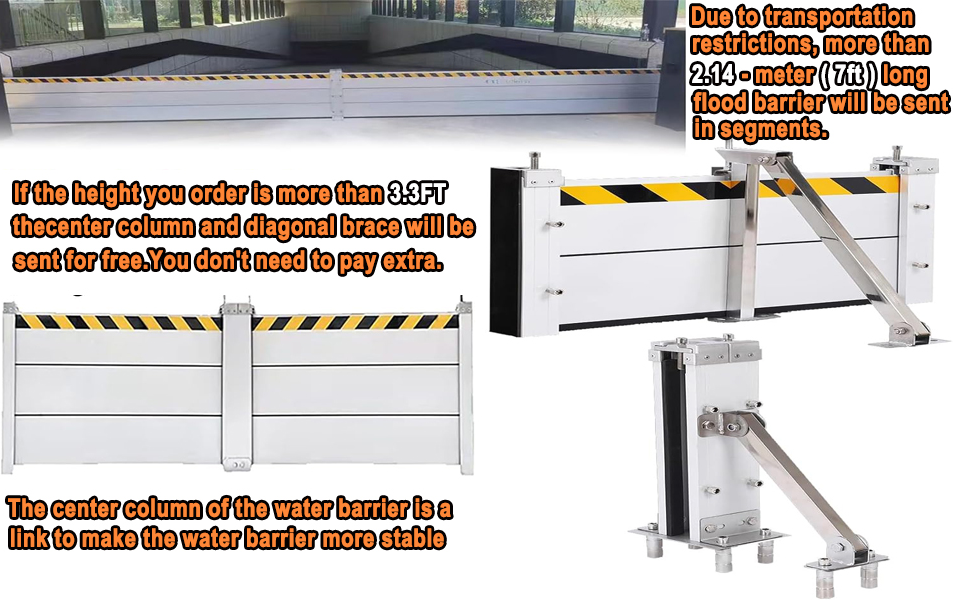

[Wide-Span Flood Barriers: High-Tech for Multiple Scenarios] From Power Room Flood Barriers to Shopfront Flood Guards, we provide Custom Wide-Span Solutions. Top panels feature yellow and black reflective strips for night safety. Our products are widely used in subways, malls, factories, and power stations to effectively reduce flood damage.
When The Weather Get’s Tough,Get Cangzhou Flood Barriers
Cangzhou Flood Materials and Equipment Co., Ltd. offers a comprehensive range of flood protection products designed to provide maximum protection against floods of all levels, threats, severity, and types.
Cangzhou Flood Materials and Equipment Co., Ltd. understands that every flood situation is unique, therefore our flood barrier solutions can be customized to your specific flood protection needs and unique flood control plans.
Whether your flood response requires interconnected flood barriers, modular floodwalls, floodgates, flood pipes, sandbag alternatives, or large sandbags, Cangzhou Flood Materials and Equipment Co., Ltd. can provide the appropriate flood protection system to provide you with comprehensive protection.
Need Help Choosing The Right Flood Barrier System?
Feel free to contact us get Garage Flood Shield Price if you need assistance in determining the right flood barrier for your specific needs, we would be happy to review your flood protection goals and requirements.
